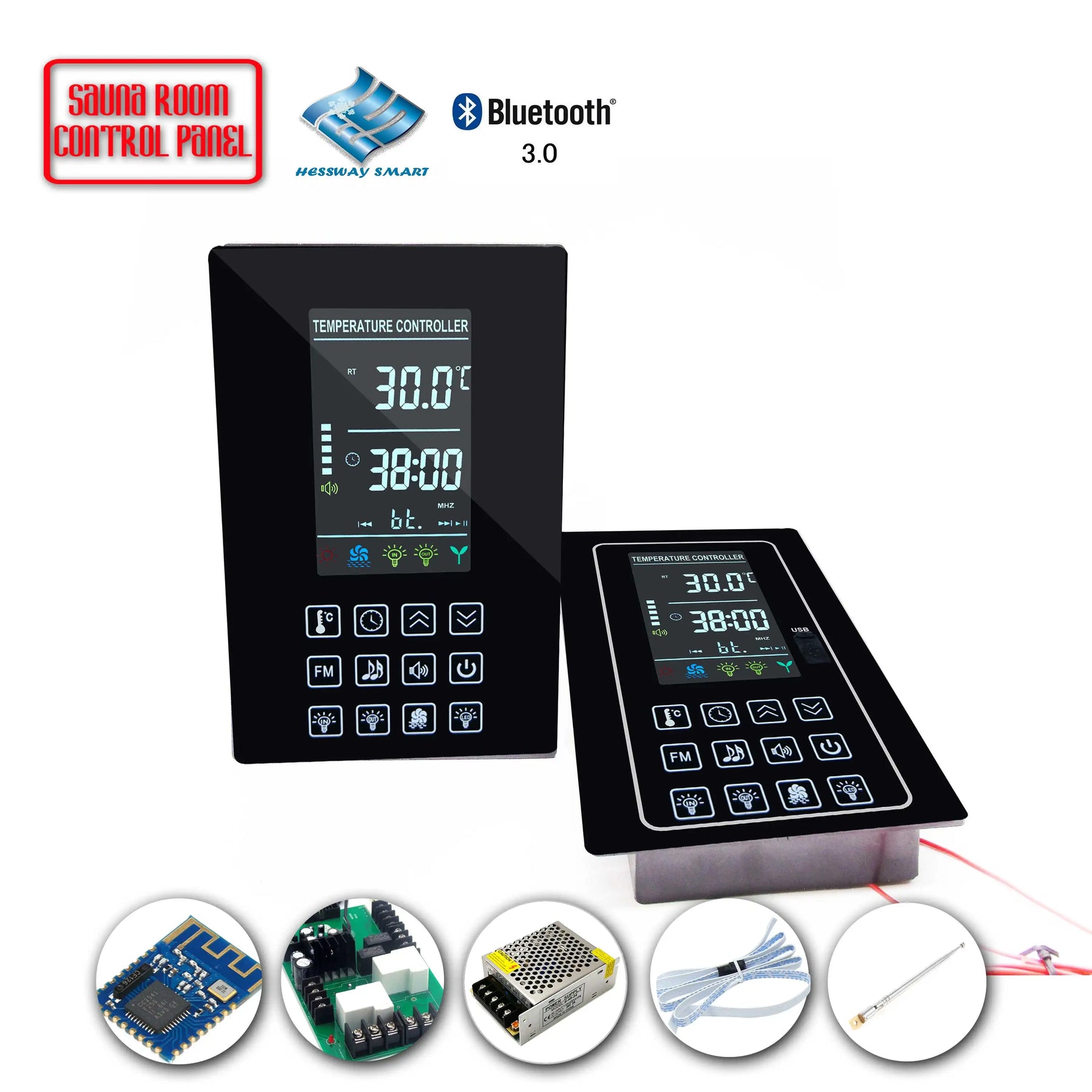

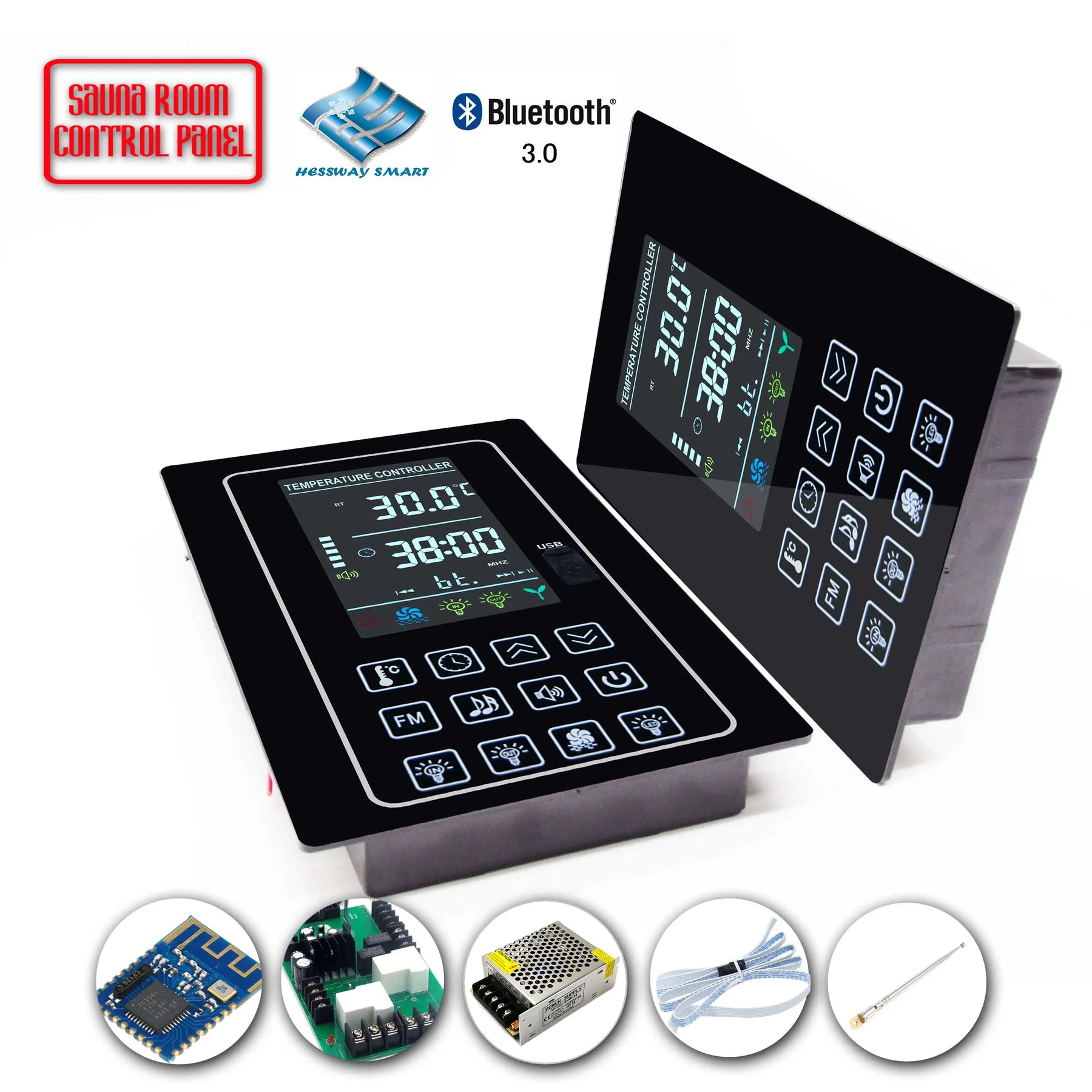

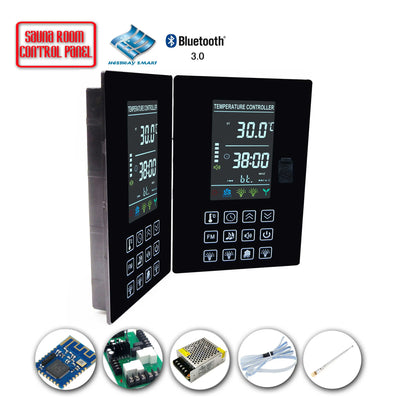

4.5KW 30A Infrared Heater Sauna Thermostat for Sauna Accessories Music Bluetooth Controller Lamp, Fan, AUX Switch
- Free worldwide shipping
- In stock, ready to ship
SPECIFICATIONS
Application: Sauna room,Khan steam room,light wave bath room
Brand Name: HESSWAY
Certification: CE
Colorful panel: LCD display
Display: Colorful LCD
Function: Control temp and light
Hign-concerned Chemical: None
Model Number: RC-813
Origin: Mainland China
Output load: 30A relay
Panel Color: Black
Power supply: 220VAC(110V-240VAC)
Sensor type: NTC 10K
Temperature adjustment range: 18-110°C
Wattage: 4.5KW
4.5KW 30A Infrared Heater Sauna Thermostat for Sauna Accessories Music Bluetooth Controller Lamp, Fan, AUX Switch
Features

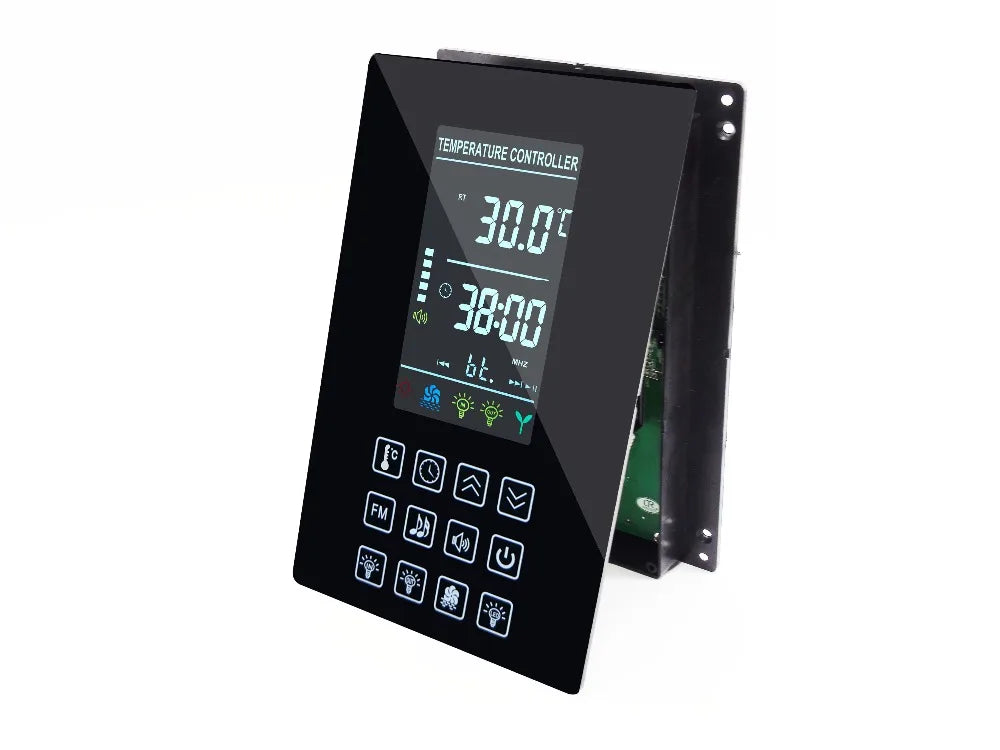

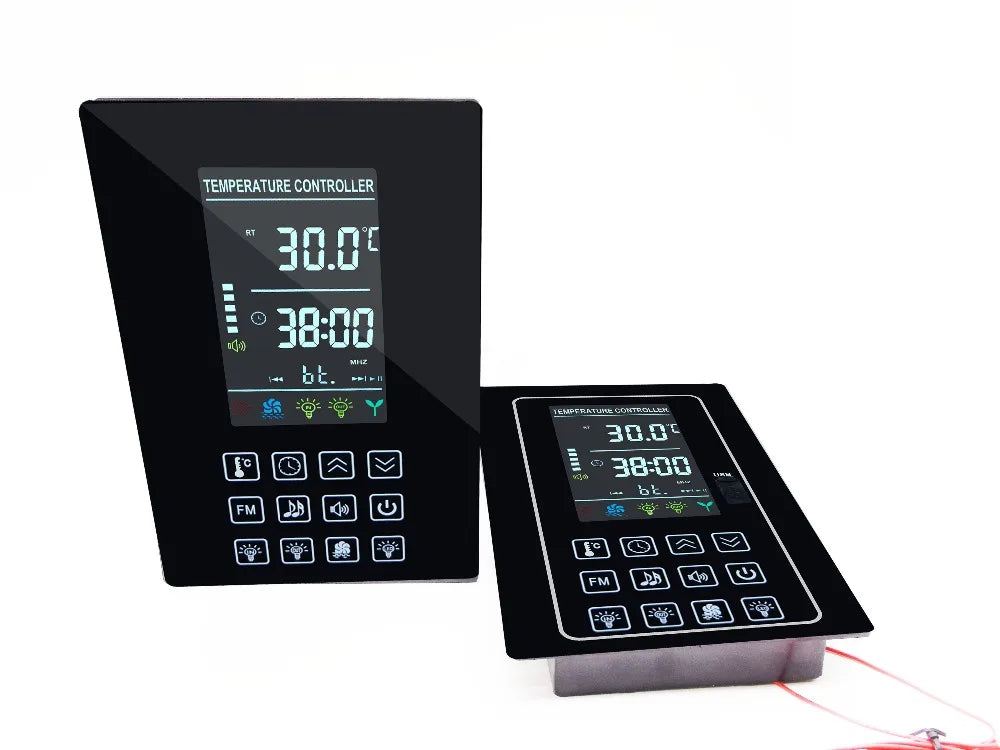

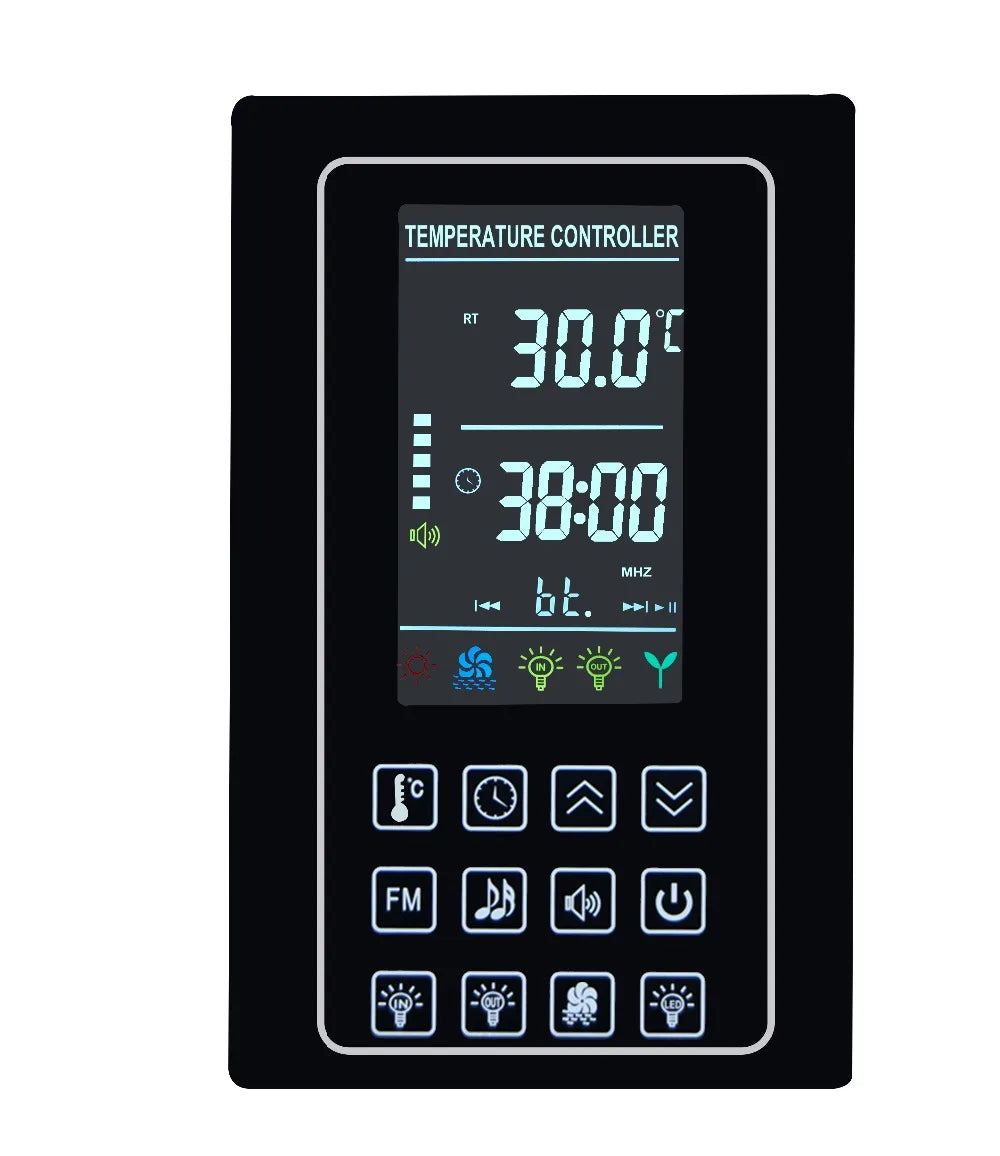

◤Color LCD screen
◤USB port for MP3
◤Power down memory function
◤Countdown setting range 1-99minute

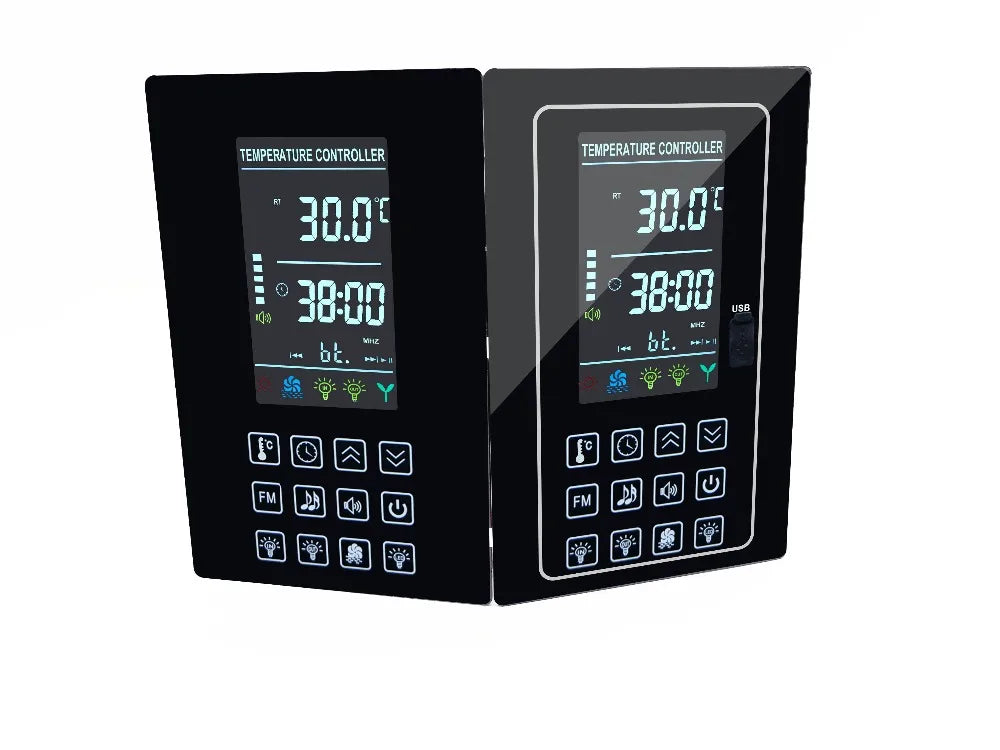

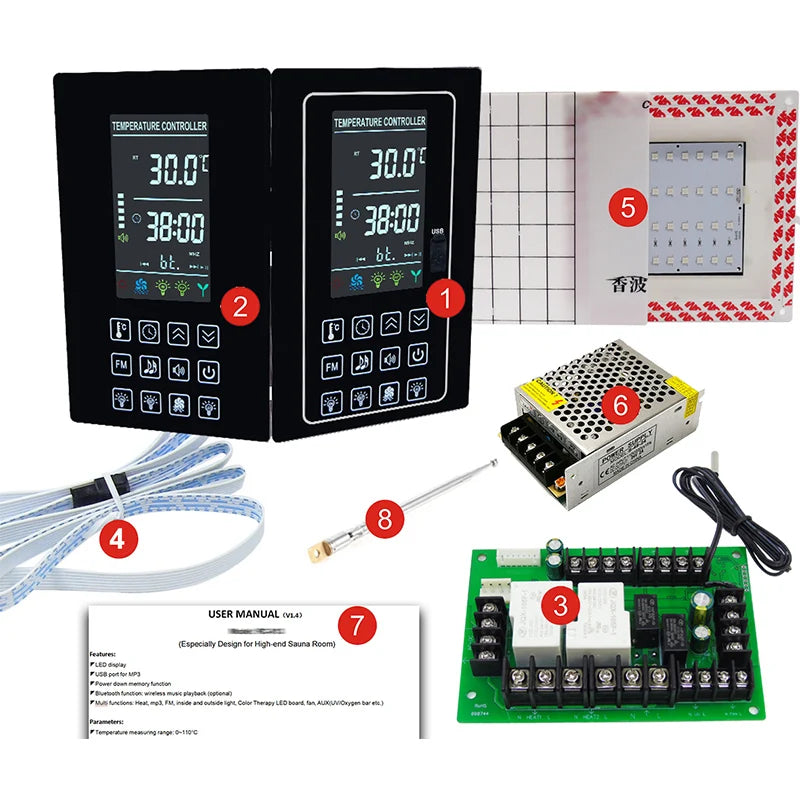

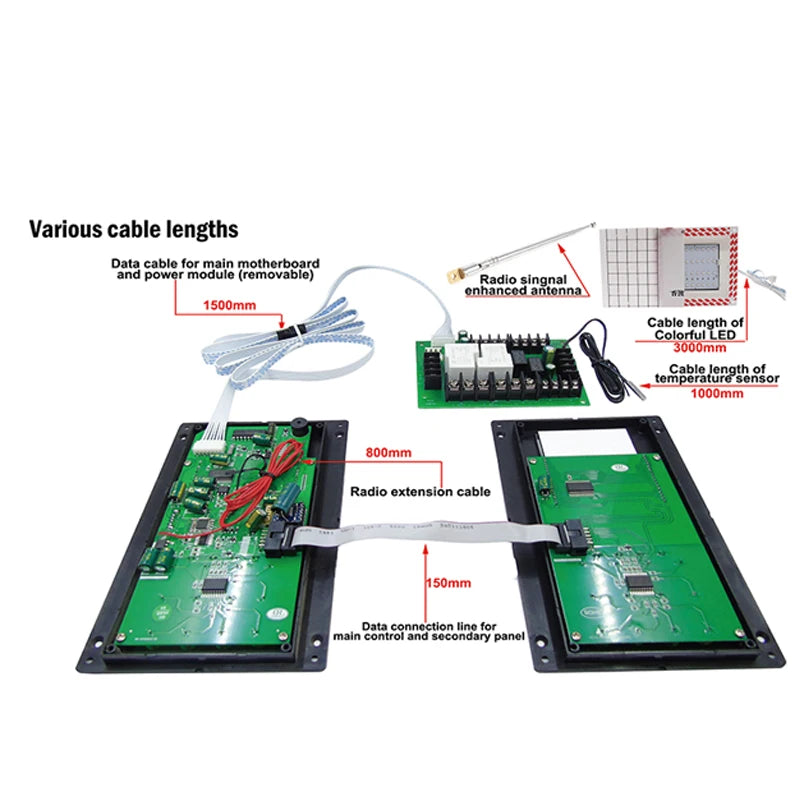

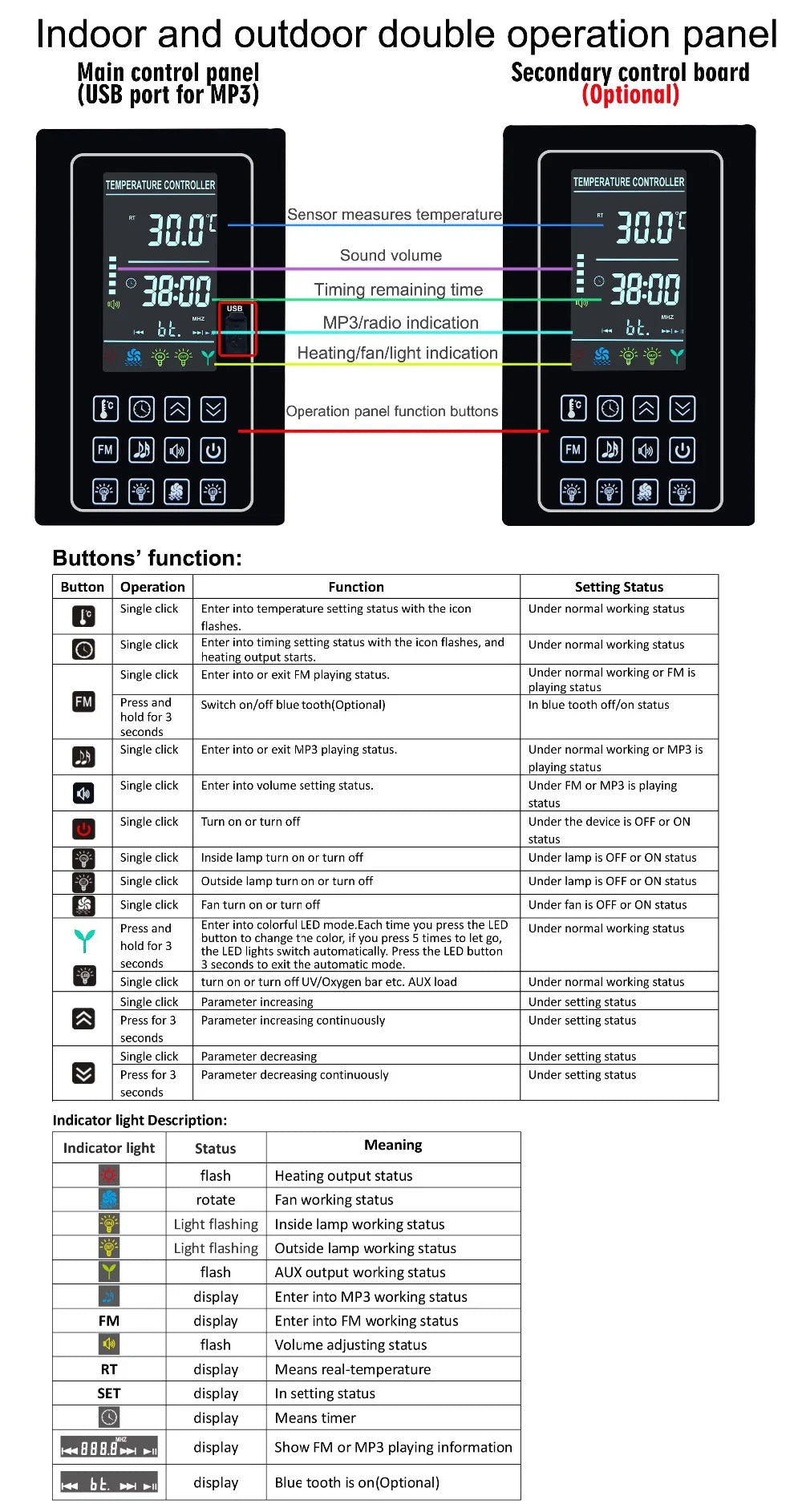

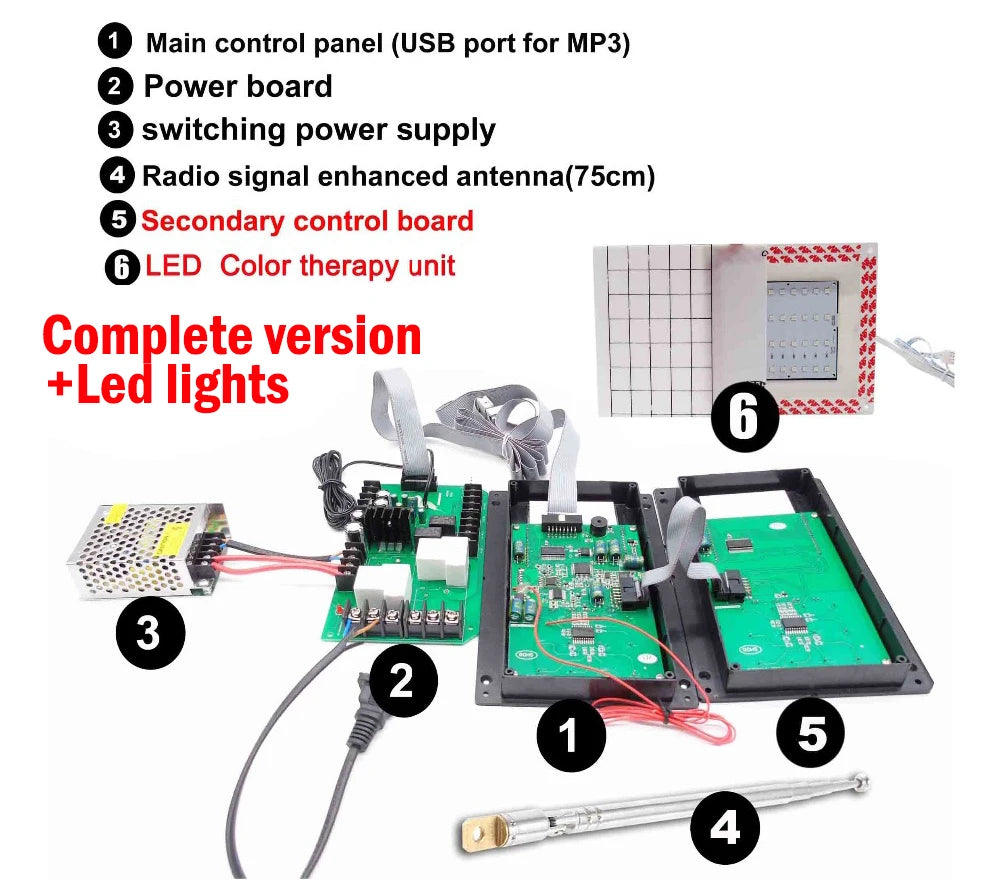

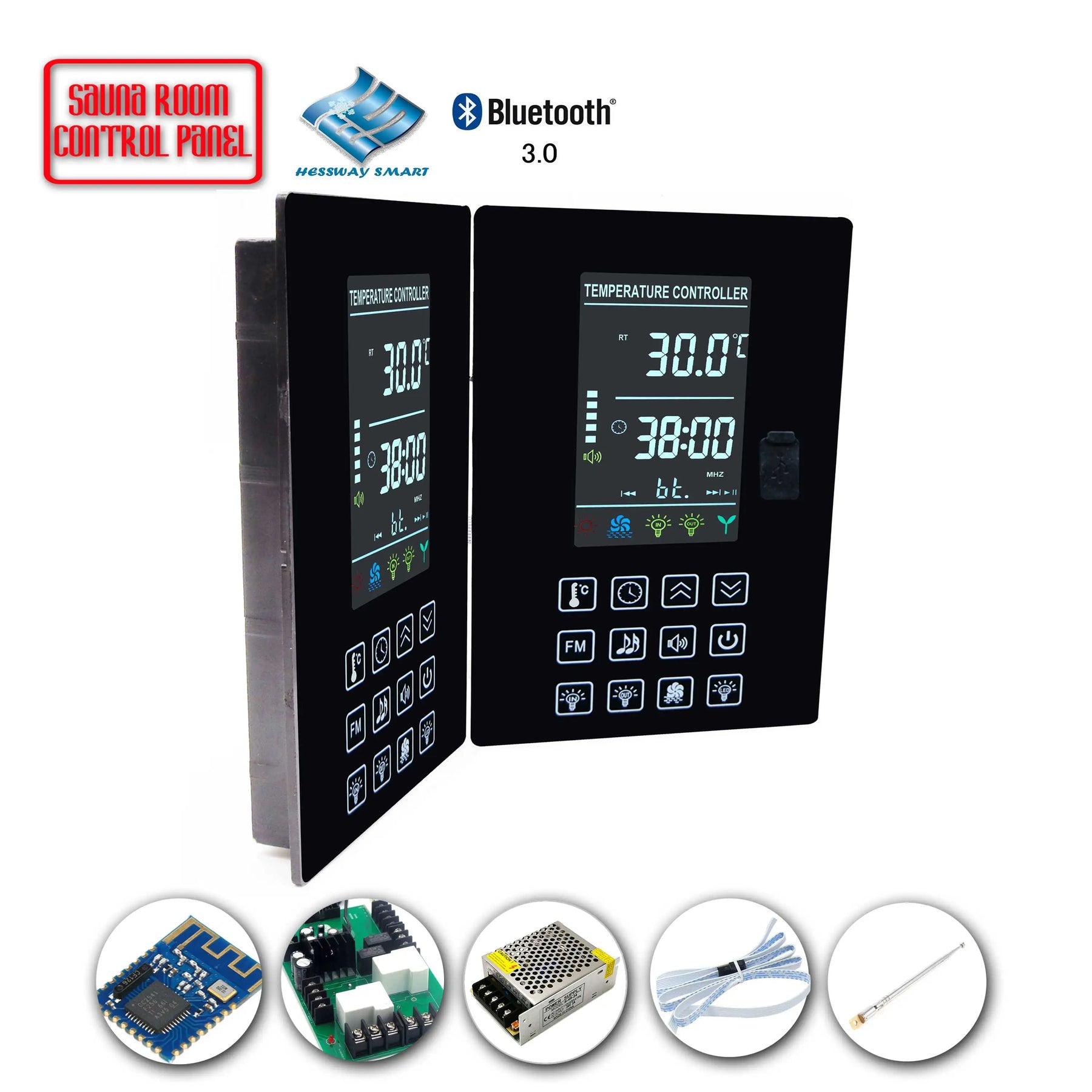

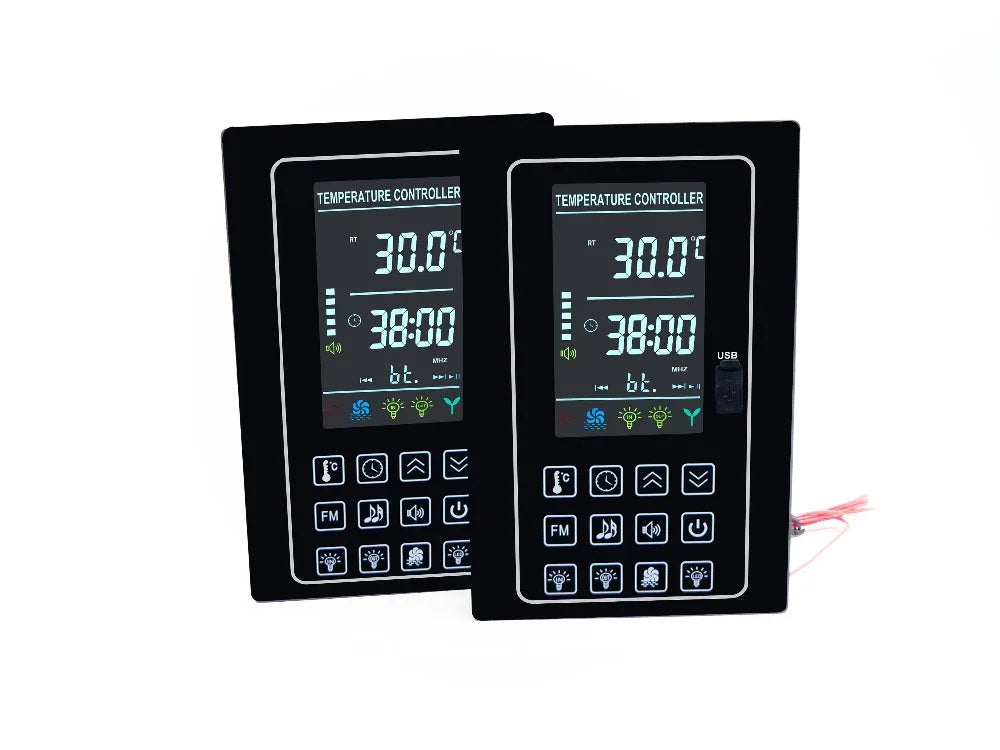

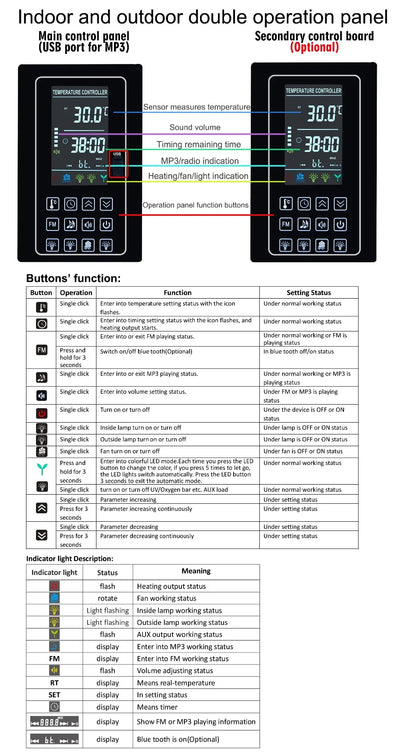

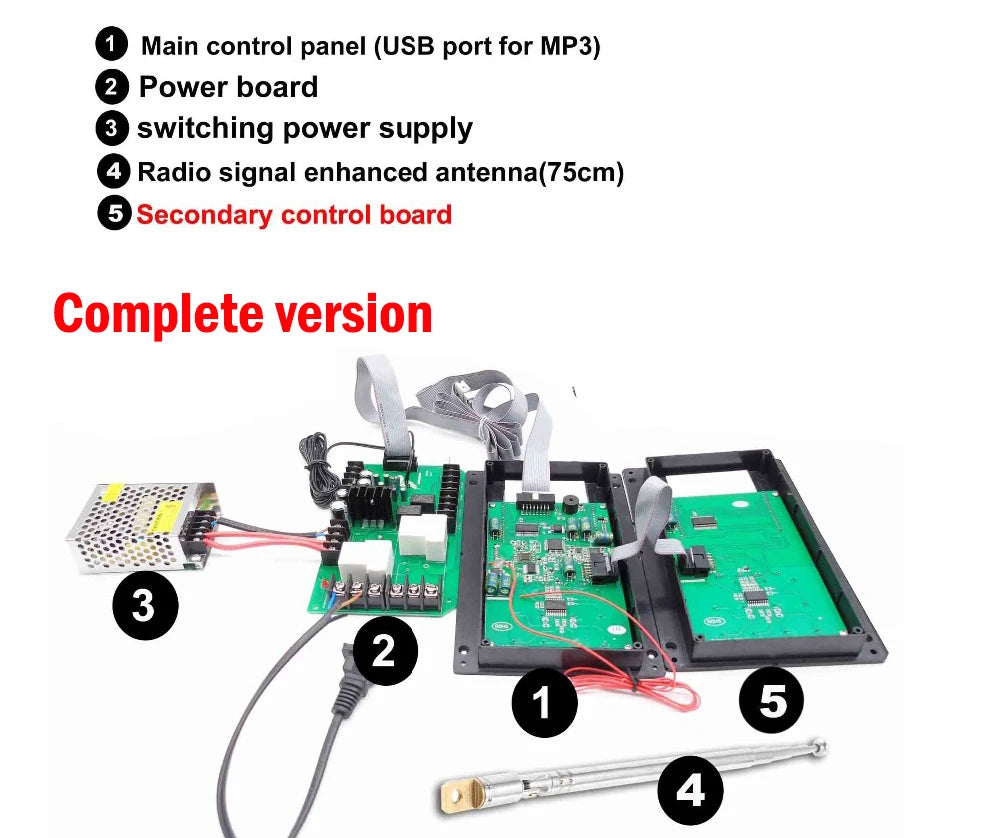

◤Dual panels: primary paneland secondary panel

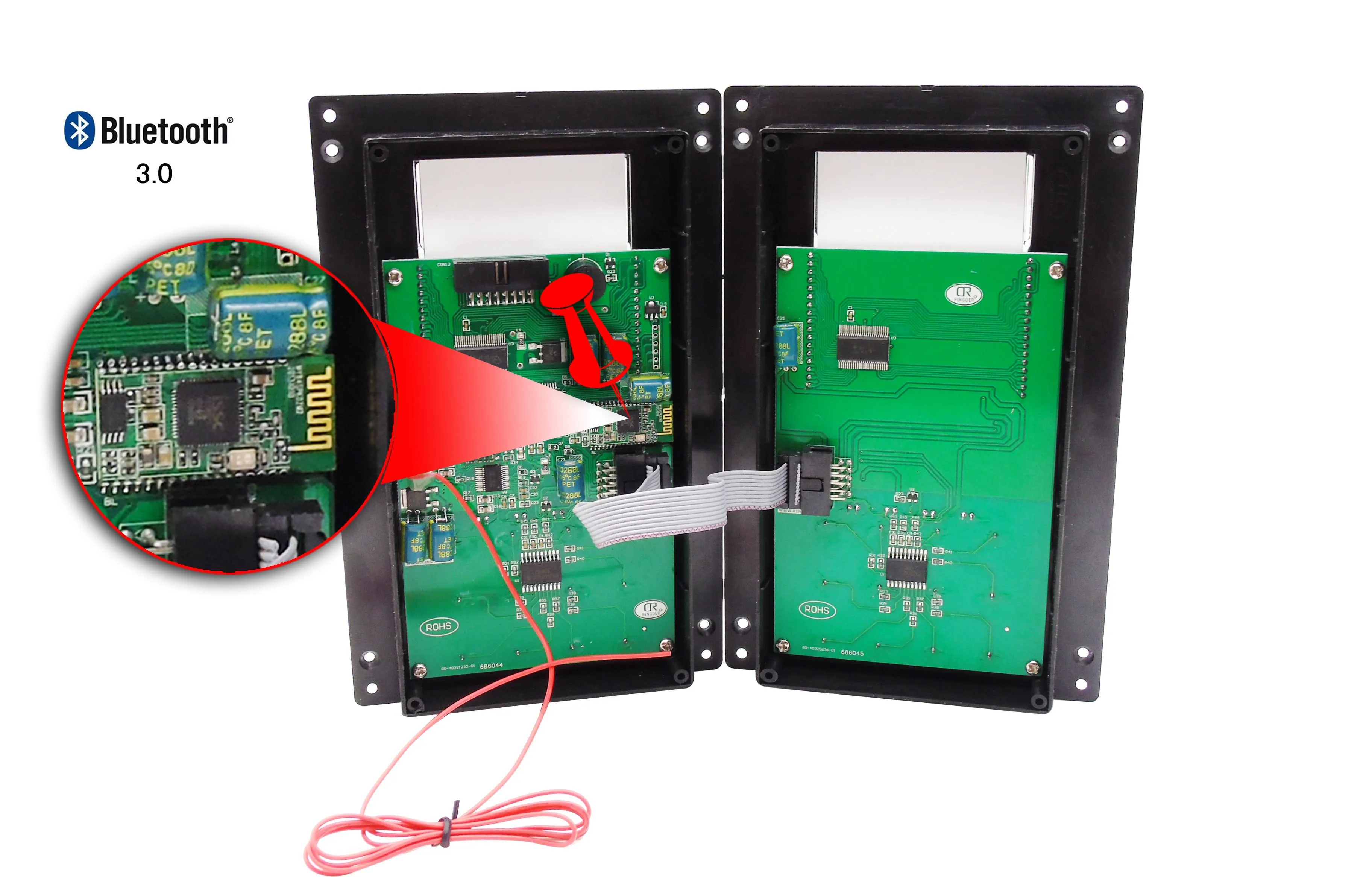

◤Multi functions: Heat, mp3,FM,Bluetooth function,inside and outside light, Color Therapy LED board, fan, AUX(UV/Oxygen bar etc.)
◤Temperature controlling range: 18~110°C
◤Resolution: 0.1°C; Accuracy: ±1°C
◤Power Supplyrange: 100～240VAC±10% 50HZ/60HZ

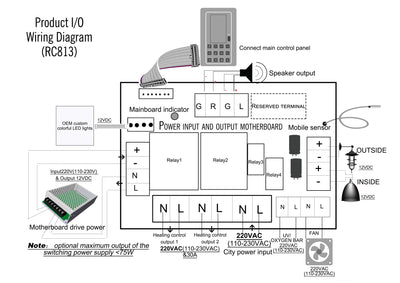

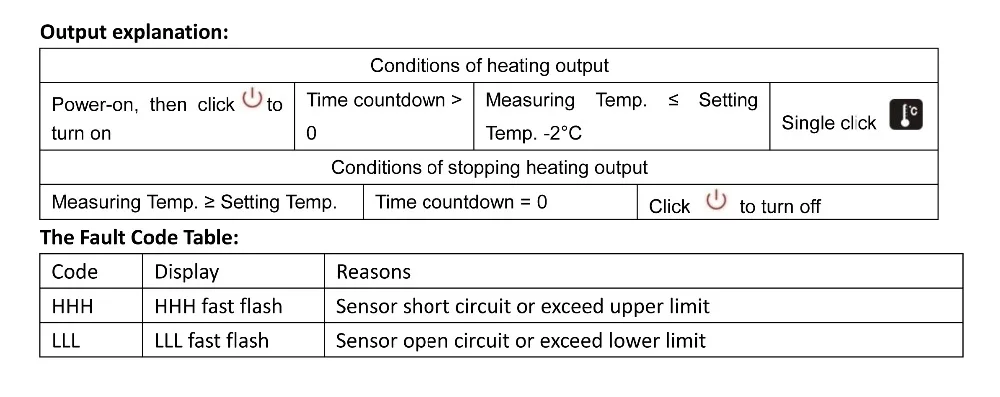

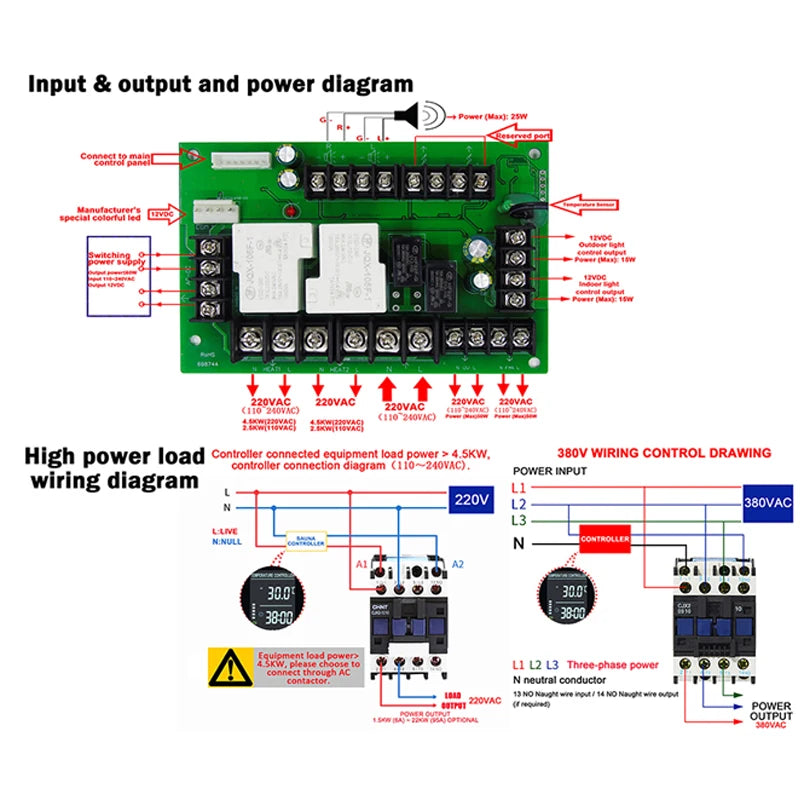

◤Heat Output: two 30A relay parallel outputs control heating; resistive load max. 4.5KW/220V, 2.5KW/110V
(If you want to connect bigger load, please buy AC contactor on your local market, and connect AC contactor before using.)
◤Fan(110V/220V): 10A relay; It is recommended to connect 50W;
◤AUX(110V/220V):10A relay; It is recommended to connect 50W;

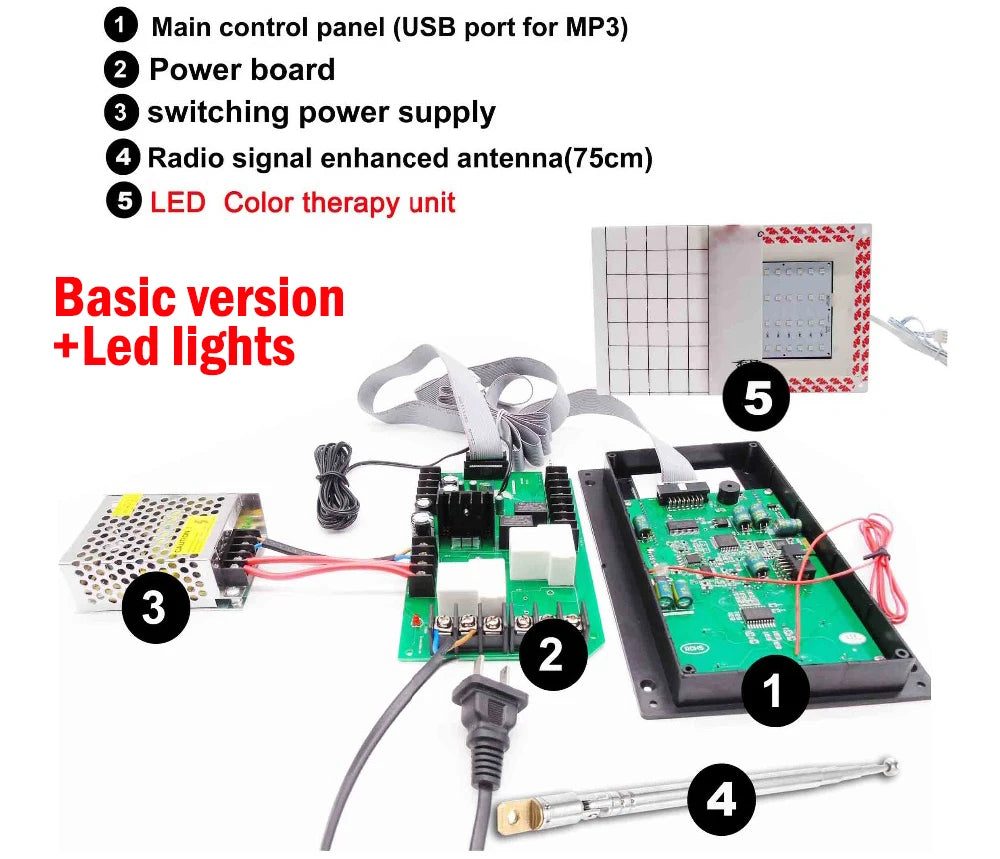

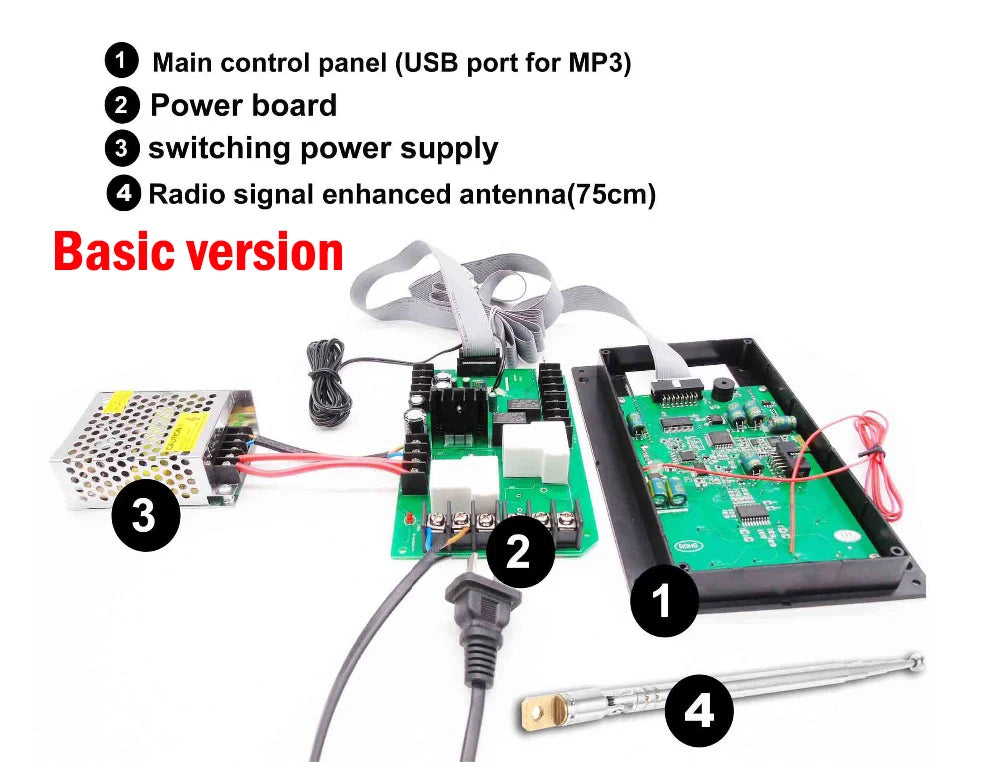

◤Switching power supply: Input 110V/220V, output 12VDC/35W (The factory can configure switching power supply for free. Optional switching power supply range 30W~60W. Warning: If the loading power is >60W+10%, the PCB may burn out);
◤Power sharing of switching power supply---Inside lamp+outside lamp+Loudspeaker load+Colorful LED
◎Inside lamp/outside lamp: 12VDC/2A±10% (recommended connection lamp 15W)
◎Loudspeaker: 5VDC, Speaker Impedance≥4Ω, Loudspeaker load: 25W

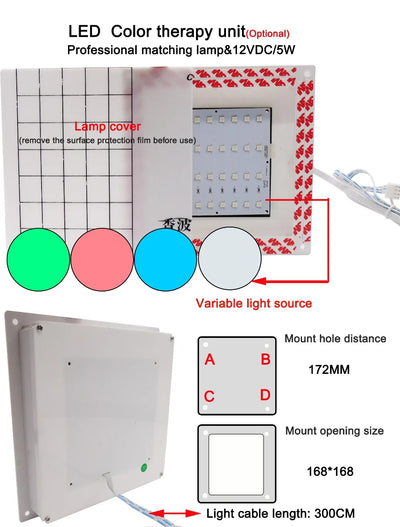

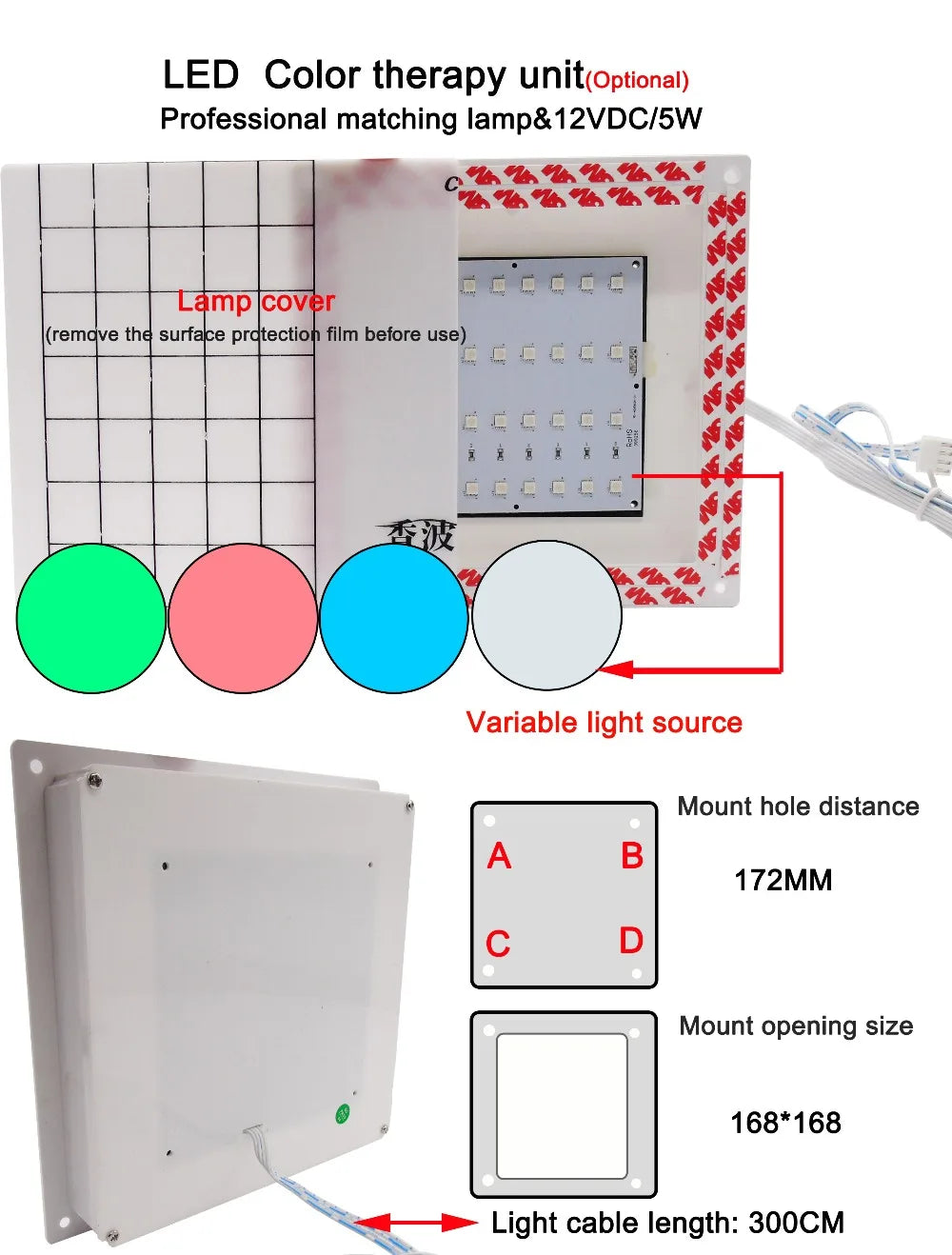

◎Colorful LED: 5W, produced by the manufacturer; Optional
◤Consumption: ≤3 w
◤Input: 1 NTC sensor

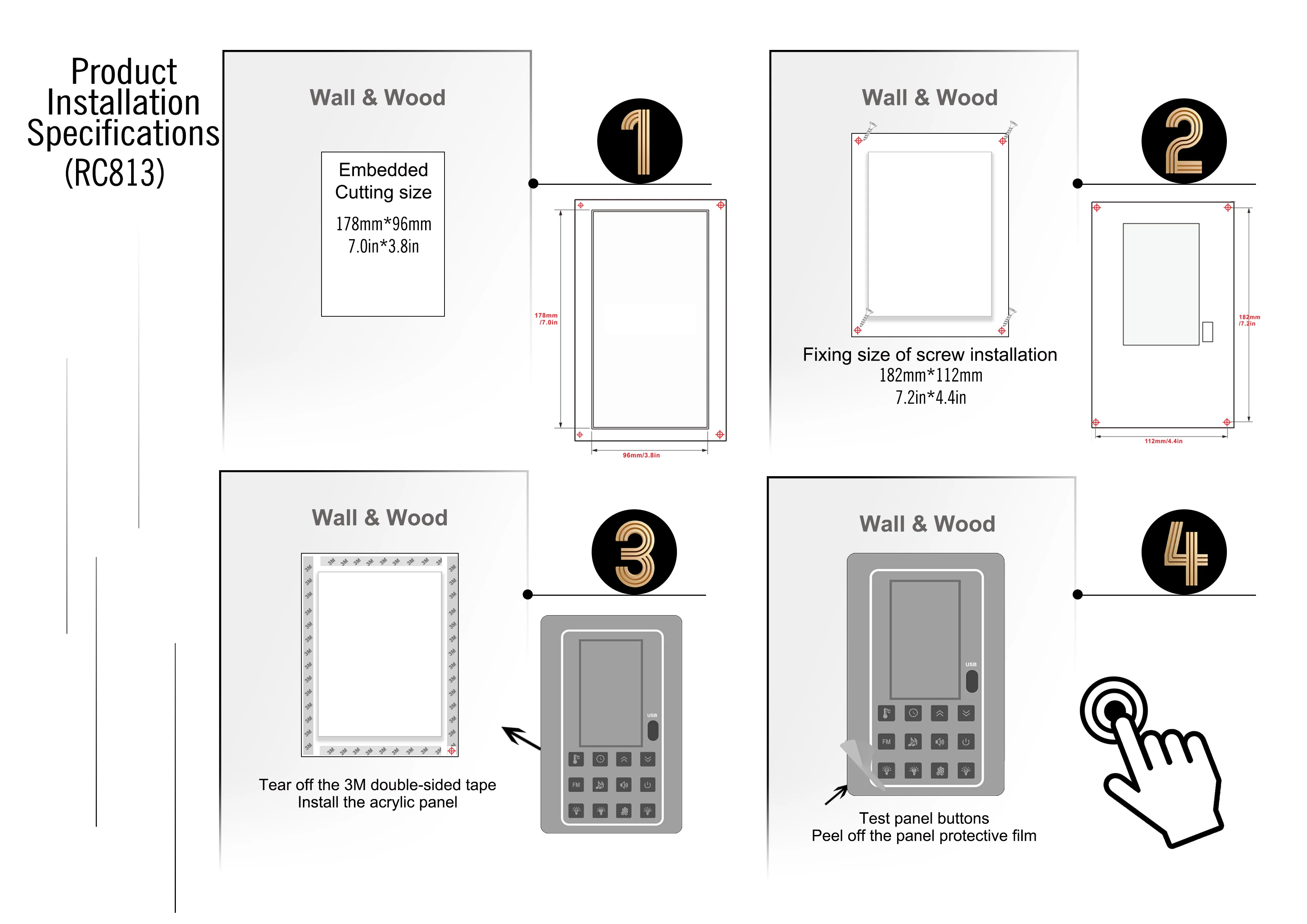

◤Panel: 195mm×124mm/7.7inx4.9in
◤EmbeddedCutting size:178mm*96mm/7.0in*3.8in
◤Fixing screwsize:182mm*112mm/7.2in*4.4in
◤Ambient requirements: temperature: -10~60°C; humidity: 20~85%

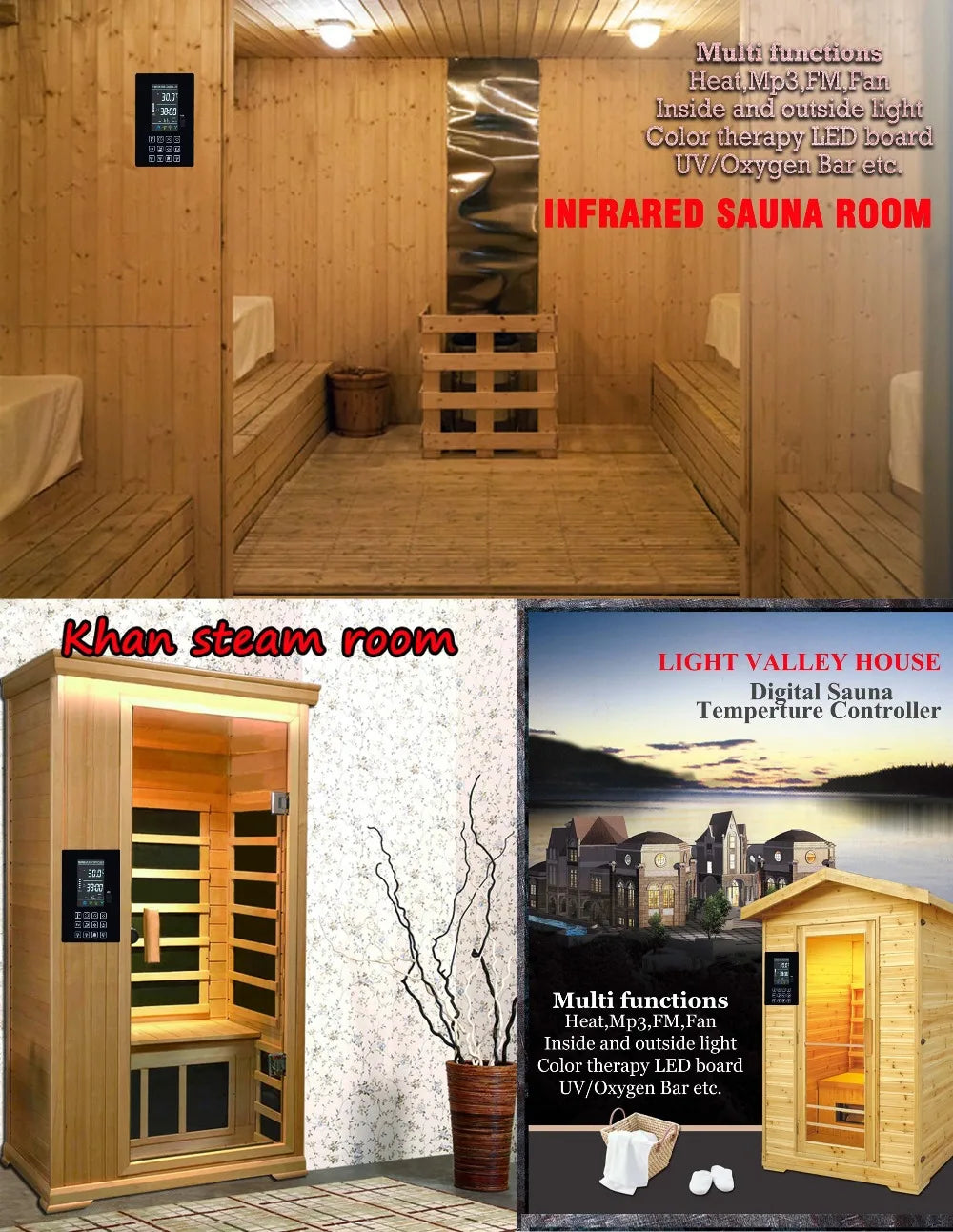

Khan steam room, Light valley house, the infrared sauna room, steam sauna room.
